A HDC1008 digital humidity sensor Micropython example on an ESP32

In this example we connect a HDC1008 digital humidity sensor to an ESP32 running Micropython

The HDC1008 is a digital humidity sensor with integrated temperature sensor that provides excellent measurement accuracy at very low power. The device measures humidity based on a novel capacitive sensor. The humidity and temperature sensors are factory calibrated. The innovative WLCSP (Wafer Level Chip Scale Package) simplifies board design with the use of an ultra-compact package. The sensing element of the HDC1008 is placed on the bottom part of the device, which makes the HDC1008 more robust against dirt, dust, and other environmental contaminants. The HDC1008 is functional within the full –40°C to +125°C temperature range.

Features

Relative Humidity (RH) Operating Range 0% to
100%
14 Bit Measurement Resolution
Relative Humidity Accuracy ±4%
Temperature Accuracy ±0.2 °C
200 nA Sleep Mode Current
Average Supply Current:
- 820 nA @ 1sps, 11 bit RH Measurement
- 1.2 µA @ 1sps, 11 bit RH and Temperature
  Measurement
Supply Voltage 3 V to 5 V
Tiny 2 mm × 1.6 mm Device Footprint
I²C Interface

Parts List

Name	Link
ESP32	WEMOS WiFi & Bluetooth Battery ESP32 development tool ESP32 battery esp8266 ESP WROOM 32 ESP32
HDC1008	HDC1008 Digital Temperature and Humidity Sensor Breakout Board Compatible with Arduino

Connecting cables	Free shipping Dupont line 120pcs 20cm male to male + male to female and female to female jumper wire

Connection

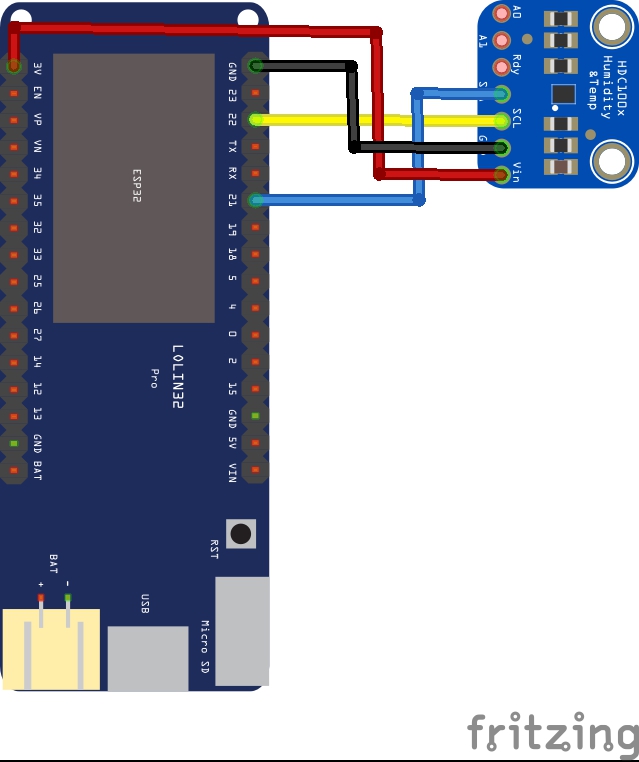

An easy module to connect to an ESP32, SCL is 22 and SDA is 21 on the Wemos board I used, you can see this is the schematic below

Code

You can use any method to upload files or an IDE for development.

The following is based on a github library – https://github.com/kfricke/micropython-hdc1008. The first part of this is the library which I upload to my ESP32

This is the library called hdc1008.py

Source code

from machine import I2C
from utime import sleep_ms

REG_TEMP = const(0x00)
REG_HUMI = const(0x01)
REG_CFG = const(0x02)
REG_SER_ID1 = const(0xfb)
REG_SER_ID2 = const(0xfc)
REG_SER_ID3 = const(0xfd)

CFG_RST = const(0b10000000)
CFG_HEAT_ON = const(0b100000)
CFG_HEAT_OFF = const(0b0)
CFG_MODE_SINGLE = const(0b0)
CFG_MODE_BOTH = const(0b10000)
CFG_BTST = const(0b1000)
CFG_TEMP_14BIT = const(0b0)
CFG_TEMP_11BIT = const(0b100)
CFG_HUMI_14BIT = const(0b0)
CFG_HUMI_11BIT = const(0b1)
CFG_HUMI_8BIT = const(0b10)

RES_8_BIT  = const(1)
RES_11_BIT = const(2)
RES_14_BIT = const(3)

class HDC1008(object):
    def __init__(self, i2c, addr=0x40, heater=False):
        if i2c == None or i2c.__class__ != I2C:
            raise ValueError('I2C object needed as argument!')
        self._i2c = i2c
        self._addr = addr
        self._heater = heater
        self._tmp = bytearray(4)
        # Read the sensor serial ID
        self.serial = 0
        self._send_byte(REG_SER_ID1)
        self._recv(self._tmp, 2)
        self.serial += (self._tmp[0] << 32) + (self._tmp[1] << 24)
        self._send_byte(REG_SER_ID2)
        self._recv(self._tmp, 2)
        self.serial += (self._tmp[0] << 16) + (self._tmp[1] << 8)
        self._send_byte(REG_SER_ID3)
        self._recv(self._tmp, 2)
        self.serial += self._tmp[0]

    def _send_byte(self, b):
        self._tmp[0] = b
        self._i2c.writeto(self._addr, self._tmp[0:1])

    def _send_bytes(self, b):
        self._i2c.writeto(self._addr, b)

    def _recv(self, buf, c):
        buf[0:c] = self._i2c.readfrom(self._addr, c)

    def _config(self, reg=None):
        if reg is None:
            self._send_byte(REG_CFG)
            self._recv(self._tmp, 2)
            return self._tmp[0:2]
        else:
            if self._heater:
                reg = reg | CFG_HEAT_ON
            self._tmp[0] = REG_CFG
            self._tmp[1] = reg
            self._tmp[2] = 0
            self._send_bytes(self._tmp[0:3])

    def heater(self, s=None):
        if s is not None:
            if s.__class__ != bool:
                raise ValueError('Heater state must be a boolean value or None!')
            else:
                self._heater = s
        else:
            return self._heater

    def battery_low(self):
        # one read command needed to have the config register defined, where
        # we can read this flag from
        self._raw_temp(CFG_TEMP_11BIT)
        return (self._config()[0] & CFG_BTST) == CFG_BTST

    def reset(self):
        self._tmp[0] = REG_CFG
        self._tmp[1] = CFG_RST
        self._tmp[2] = 0
        self._send_bytes(self._tmp[0:3])
        sleep_ms(20)

    def _raw_temp(self, acc):
        self._config(CFG_MODE_SINGLE | acc)
        self._send_byte(REG_TEMP)
        sleep_ms(15)
        self._recv(self._tmp, 2)
        return self._tmp[1] + (self._tmp[0] << 8)

    def temp(self, acc=CFG_TEMP_14BIT):
        return (self._raw_temp(acc) / 65536) * 165 - 40

    def _raw_humi(self, acc):
        self._config(CFG_MODE_SINGLE | acc)
        self._send_byte(REG_HUMI)
        sleep_ms(13)
        self._recv(self._tmp, 2)
        return self._tmp[1] + (self._tmp[0] << 8)

    def humi(self, acc=CFG_HUMI_14BIT):
        return (self._raw_humi(acc) / 65536.0) * 100.0

    def _raw_temp_humi(self, t_acc, h_acc):
        self._config(CFG_MODE_BOTH | t_acc | h_acc)
        self._send_byte(REG_TEMP)
        sleep_ms(20)
        self._recv(self._tmp, 4)
        return (self._tmp[1] + (self._tmp[0] << 8), self._tmp[3] + (self._tmp[2] << 8))

    def temp_humi(self, t_acc=CFG_TEMP_14BIT, h_acc=CFG_HUMI_14BIT):
        (raw_temp, raw_humi) = self._raw_temp_humi(t_acc, h_acc)
        return (((raw_temp / 65536) * 165) - 40, (raw_humi / 65536) * 100.0)

I upload this file to my ESP32 and now in main.py I copy the following code in

Source code

import machine
try:
    import esp
    esp.osdebug(None)
    i2c = machine.I2C(sda=machine.Pin(4), scl=machine.Pin(5))
except:
    pass
try:
    import pyb
    i2c = machine.I2C(sda=machine.Pin('X10'), scl=machine.Pin('X9'), freq=400000)
except:
    pass
import utime
from hdc1008 import HDC1008

hdc = HDC1008(i2c)
hdc.reset()
hdc.heater(False)
print("Sensor ID: %s" % (hex(hdc.serial)))

def read_sensors():
    print("Temperature (degree celsius): %.2f" % (hdc.temp()))
    print("Relative humidity (percent):  %.2f" % (hdc.humi()))
    print("Both sensors read at once:    %.2f  %.2f" % hdc.temp_humi())
    print("Battery low: %s" % (hdc.battery_low()))

print("Reading sensors 10 times using idle sleeping...")
for i in range(10):
    read_sensors()
    utime.sleep_ms(100)

Testing

Open up the REPL window. Here is what I saw in uPyCraft

Ready to download this file,please wait!
…….
download ok
exec(open(‘./main.py’).read(),globals())
Sensor ID: 0x224f67673
Reading sensors 10 times using idle sleeping…
Temperature (degree celsius): 22.99
Relative humidity (percent): 33.60
Both sensors read at once: 23.01 33.60
Battery low: False
Temperature (degree celsius): 23.01
Relative humidity (percent): 33.60
Both sensors read at once: 22.99 33.60
Battery low: False
Temperature (degree celsius): 22.99
Relative humidity (percent): 33.50
Both sensors read at once: 22.99 33.50
Battery low: False
Temperature (degree celsius): 22.99
Relative humidity (percent): 33.50
Both sensors read at once: 22.99 33.50
Battery low: False
Temperature (degree celsius): 22.97
Relative humidity (percent): 33.50
Both sensors read at once: 22.96 33.50
Battery low: False

Links

http://www.ti.com/lit/gpn/hdc1008
